Troctolite with chromite layer
Click the microscope button to view a thin section for this sample.
Click the microscope button to view a thin section for this sample.
Click the object button to view an object rotation for this sample.

Fact sheet

Troctolite with chromite layer

This sample of troctolite comes from Cnapan Breaca on the Isle of Rum, which is a deeply eroded volcano formed in the Paleogene period. The remains of the volcano magma chamber exhibit layering reflecting the slow crystallisation of the magma as it cooled. The layers we see today formed as crystals of different composition and settled to the bottom of the chamber. In most cases the crystals continued to grow as they settled and, following their settling, the liquid filled pore spaces, which also crystallised, resulting in complex textures that allow geologists to track the evolution of the liquid magma composition in great detail. This sample comes from the uppermost part of one of 15 rhythmically layered units at the contact between units 7 and 8.

The thin section shows olivine grains apparently grading and settling, forming almost 100 per cent of the layer at one point just above a layer of smaller chromite grains (a denser and thus more rapidly settling mineral phase). Plagioclase also forms a cumulate phase intergrown with olivine. Pyroxene apparently grew late in the crystallisation sequence, filling spaces remaining between olivine grains.

Additional images

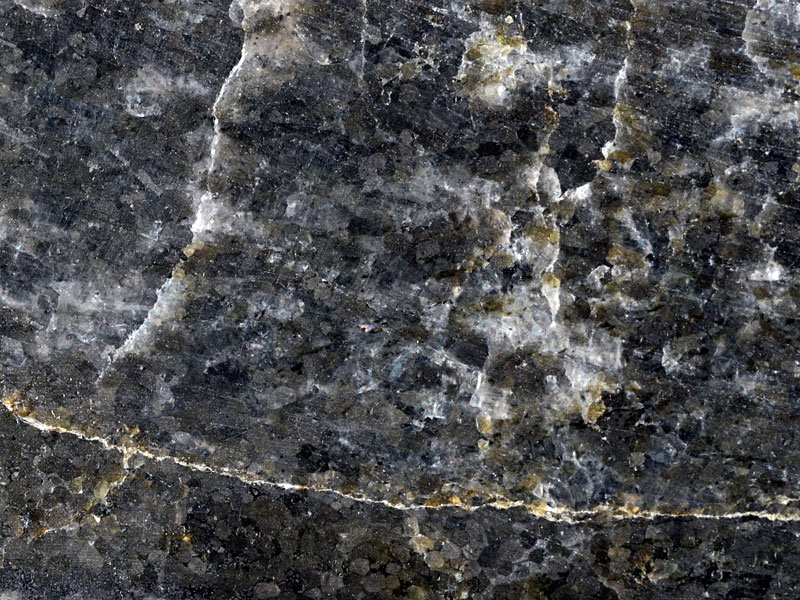

  • chromite layer - width 2.6 cm

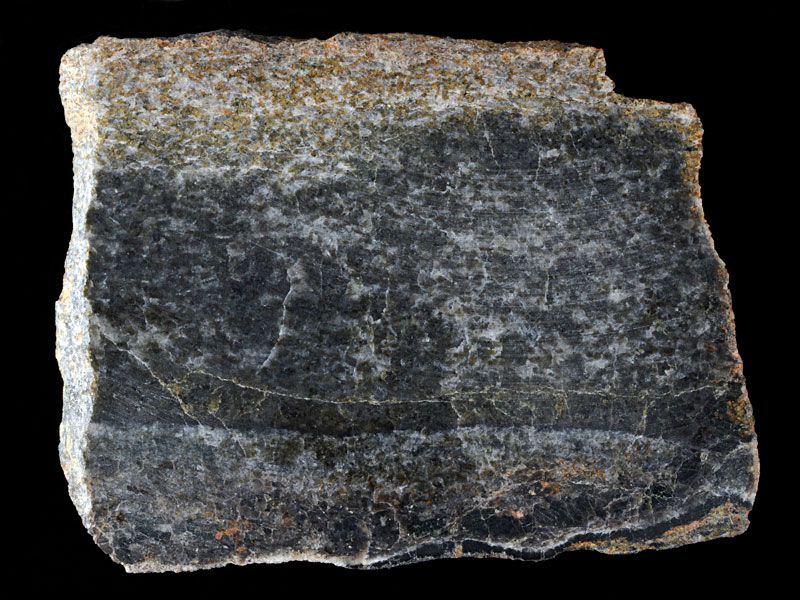

  • chromite layer (wet) - width 8 cm
56.9948, -6.2934
Cnapan Breaca, Isle of Rum, Scotland
