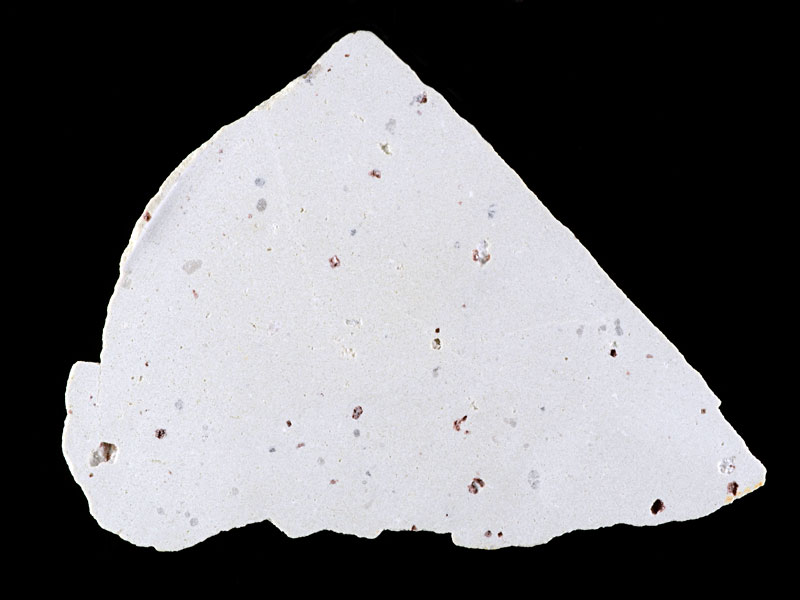

This highly altered granite porphyry dyke comes from Littlejohn's china clay pit, St Austell, Cornwall. China clay in this area was created while the underlying granite was still cooling, when it was fluxed by fluids rich in water, boron and fluorine, attaching the sodium-rich feldspar. Clay is mined in this area by high pressure water hoses and filtering to remove the remaining micas and quartz. Littlejohn's clay pit has been active since the 1800s and continues to supply fine clays suitable for use in paper making.
In thin section the rock contains fine-grained altered plagioclase and orthoclase feldspars, and unaltered quartz phenocrysts. White mica is also common in the thin section.
The United Kingdom Virtual Microscope (UKVM) collection consists of igneous, sedimentary and metamorphic rocks from around the UK.
It is intended as a teaching resource, helping to tell the story of the common rock types and how they form, and reflecting the history of the UK at the margins of the continent of Europe. The collection is a series of teaching sets, for example igneous rocks from the North Atlantic Igneous Province and SW England; high-temperature metamorphic rocks from Scotland and low-temperature metamorphic rocks from Wales; and sedimentary rocks, including English limestones and sandstones.
