Kaolinised granite - St Austell

This altered granite comes from Littlejohn's china clay pit, St Austell, Cornwall. China clay in this area was created while the molten granite was still cooling, when it was fluxed by fluids rich in water, boron and fluorine, attacking the sodium-rich feldspar. Clay is mined in this area by high pressure water hoses and filtering to remove the remaining micas and quartz. Littlejohn's clay pit has been active since the 1800s and continues to supply fine clays suitable for use in paper making.

In thin section the rock contains highly altered plagioclase and orthoclase feldspars that are barely recognisable as they have been transformed to fine-grained clay mineral, mostly kaolinite. Biotite is recognisable through the pleochroic haloes, although highly altered. In contrast, quartz is unaltered and clear. Small grains of tourmaline are also present.

Additional images

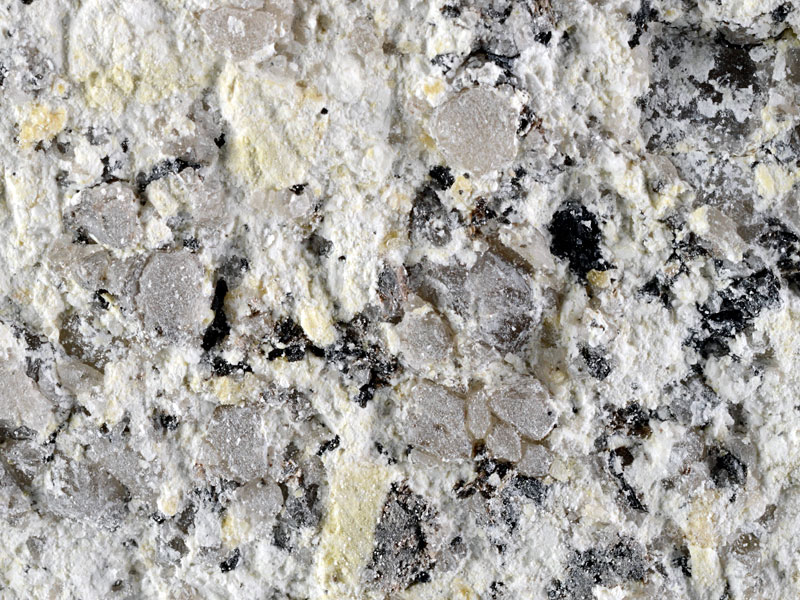

  • granite - width 3.3 cm
50.382199, -4.80669
Littlejohn's china clay pit, St Austell, Cornwall
