Apollo 14

Parent collection:

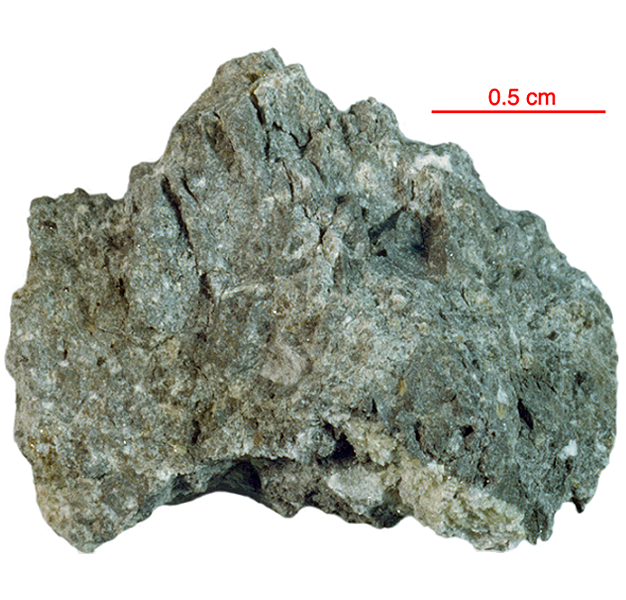

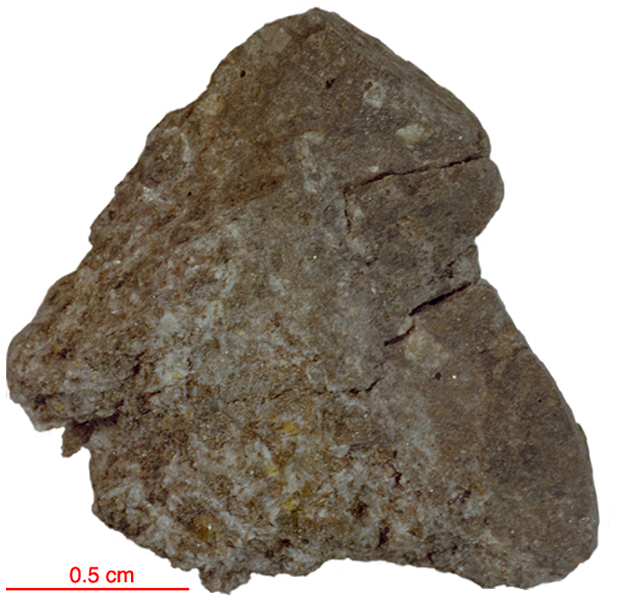

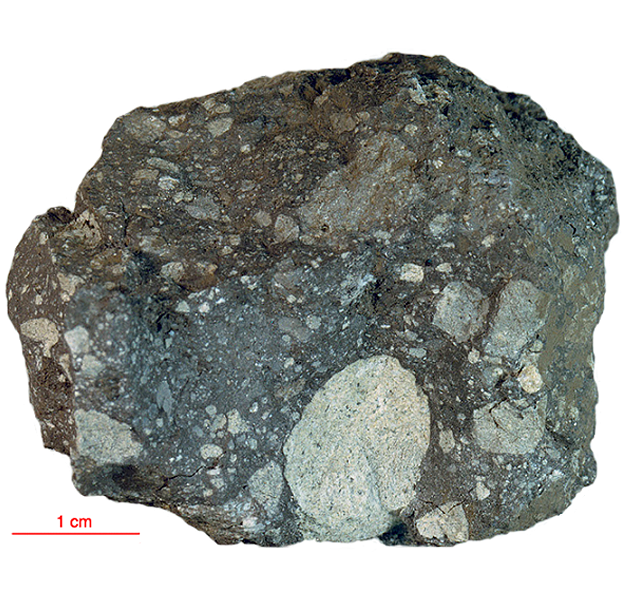

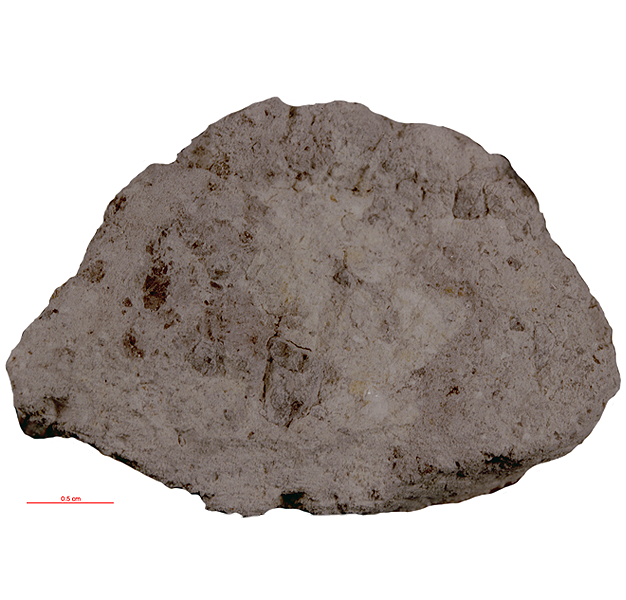

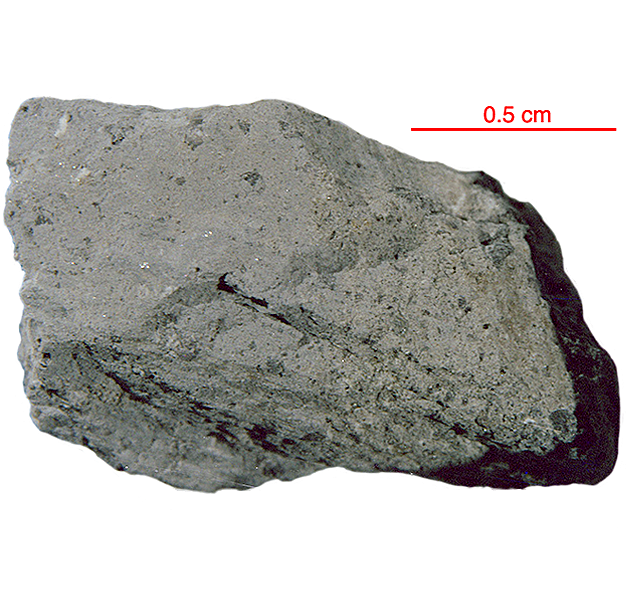

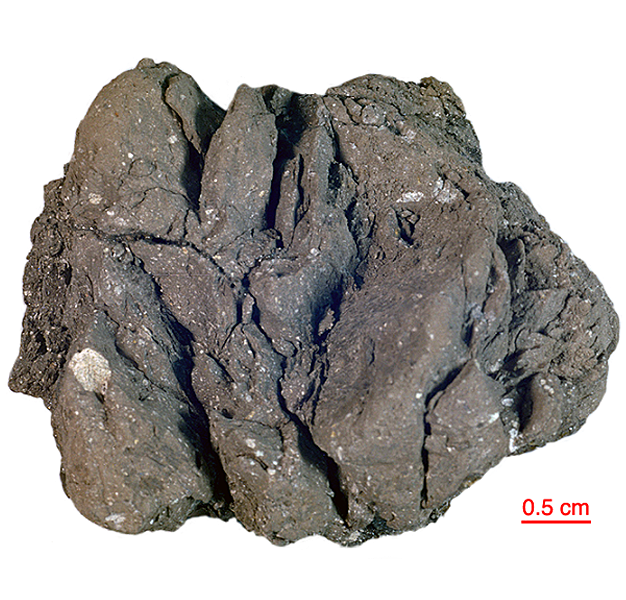

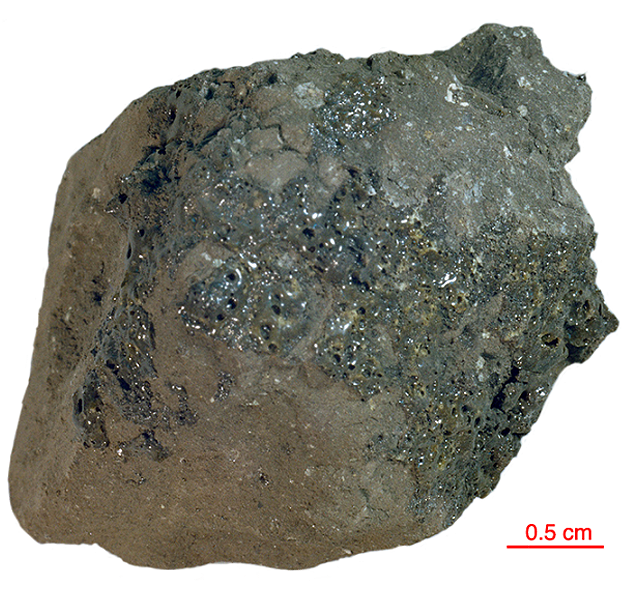

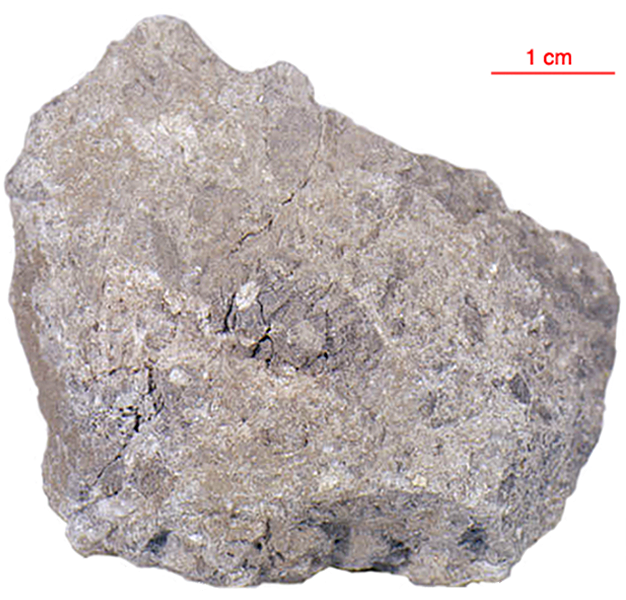

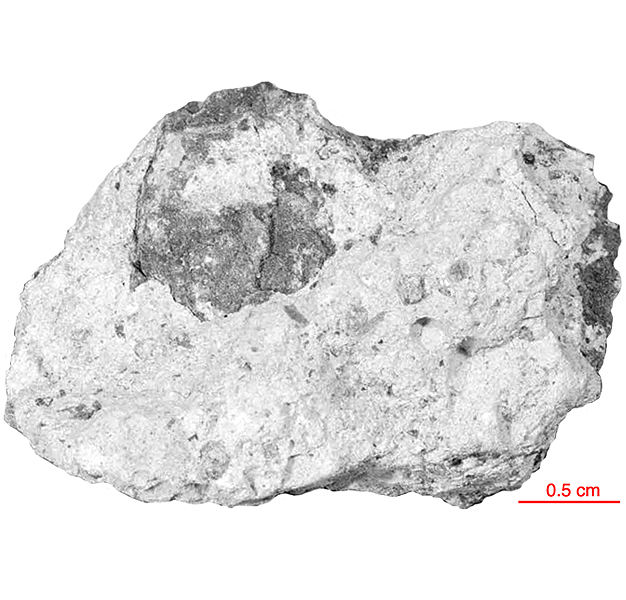

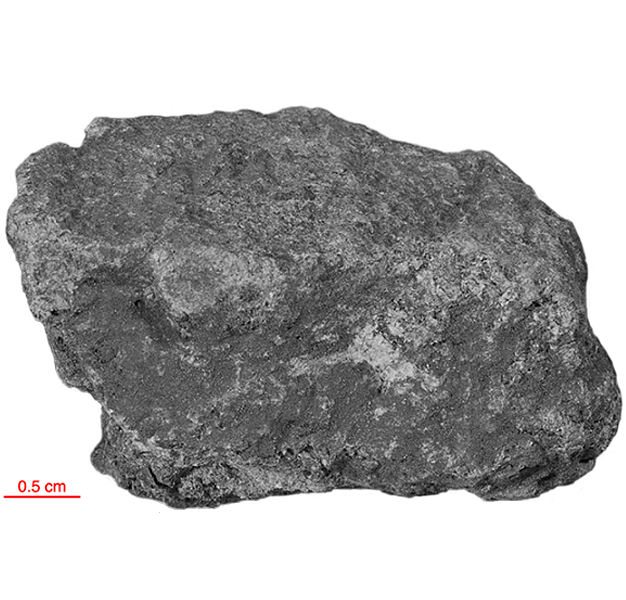

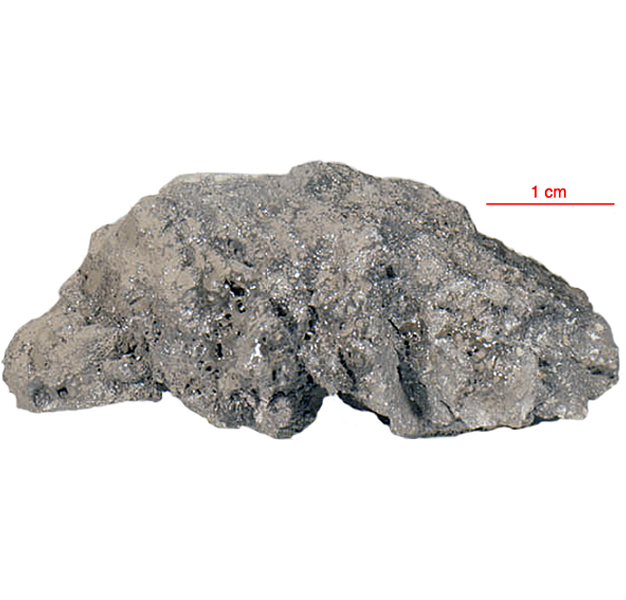

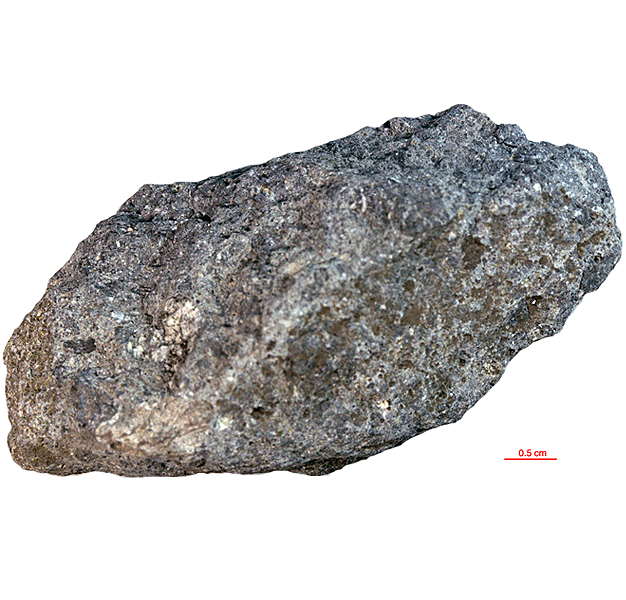

The Apollo 14 landing site was in a region formed by impact-basin debris. Most of the 42 kilograms of rocks and soil collected on Apollo 14 are breccias (rocks that are composed of fragments of other, older rocks). In some cases, the rock fragments that form a breccia are themselves breccias. Such rocks obviously have experienced complex histories with multiple generations of impact events. Some breccias were heated enough that some of the material in the rock was melted.

Apollo 14 was launched on January 31, 1971.

Main image:
status:
active

When you look at the Moon on a clear night with the naked eye, you can see colour variations. The overall pattern that they make is sometimes called ‘the man in the Moon’ because some people think they see a face. The lighter areas are the highlands and the darker areas are maria (mare is the singular form).

The lunar highlands represent the original lunar crust, as seen in the previous step. The oldest highland rocks are more than 4.15 billion years old and sometimes as old as 4.4 billion years, which is older than any rock found on Earth. They are mainly anorthosite, but also include dunite and gabbro with increasing depth. These are the oldest rocks on the Moon and are evidence for a magma ocean, as discussed earlier.

In contrast, the maria are basins filled in with basalt and were formed mostly between roughly 3.0 and 3.5 billion years ago. However, there are some small patches that are thought to be as young as around 1.0 billion years. The mare basalts are secondary to the Moon’s formation, in the sense that they did not form from the magma ocean stage like anorthosite, but by later heating and melting of the mantle in the same way that volcanoes are formed on Earth.

Two other types of deposit are found on the surface of the Moon:

regolith: the crushed remains of other rock types that coat much of the surface
breccia: a rock formed of regolith that has been welded together at high temperature and pressure.
Regolith is the mixture of dust, mineral fragments and rock fragments that lies on the surface. Breccia is formed in the explosions when large asteroids hit the Moon.

The Moon has no atmosphere, so even the smallest meteorites just millimetres across reach the surface and form craters. (Such meteorites are called micrometeorites.) Some of the Moon rocks returned to Earth by the Apollo astronauts have small pock marks formed when tiny particles hit them. Each is filled by a thin layer of rock that melted in the impact and then re-solidified.

additional_image:
Apollo 14 crew: Stuart Roosa, Alan Shepard & Edgar Mitchell (courtesy of NASA)
Apollo 14 lunar module (courtesy of NASA)
Lunar module returns to Earth (courtesy of NASA)
Apollo 14 sample locations
